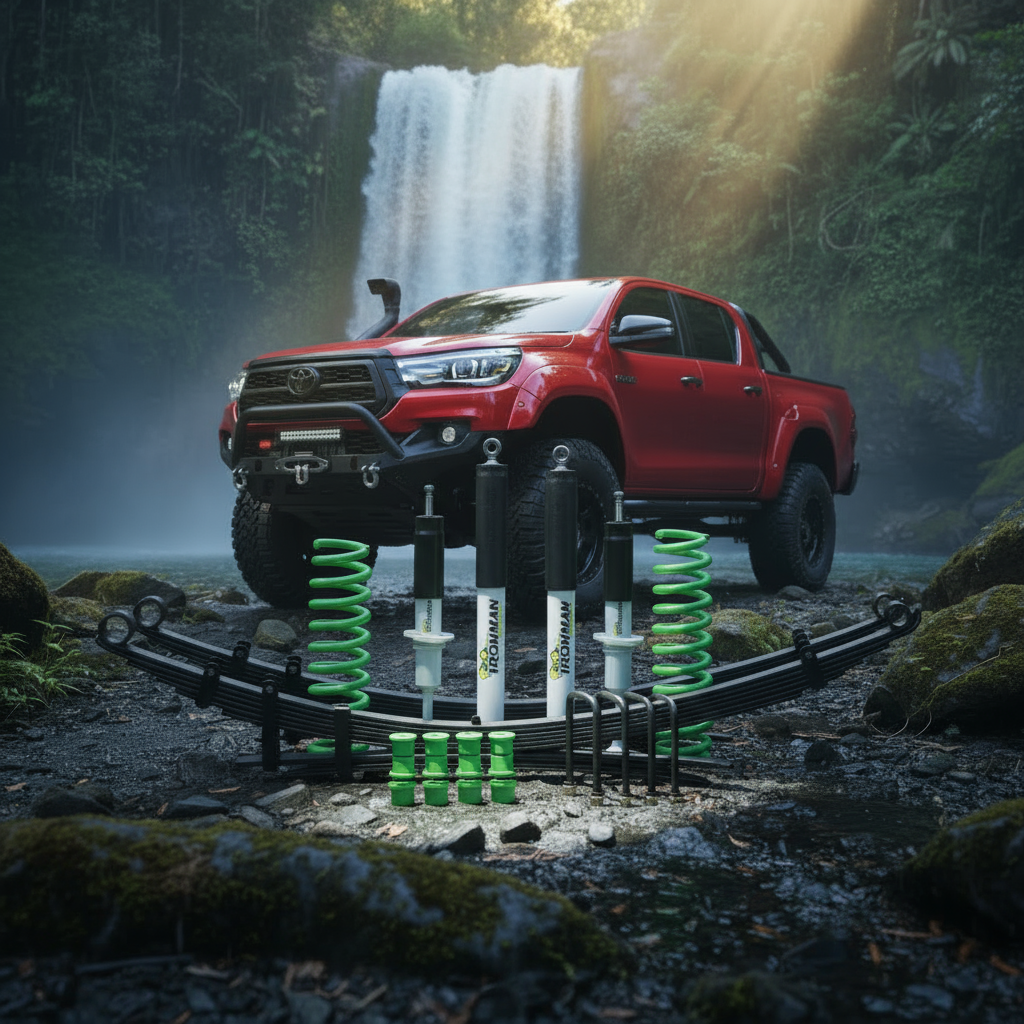

- Ironman Nitro Gas Suspension delivers reliable all-round 4x4 performance, comfort, and stability on and off-road.
Kit Includes
| Description | |
| Nitro Gas Strut - Performance | 2 |
| FRONT COIL SPRING Light 0mm 0 - 50kg | 1 |
| REAR SHOCK ABSORBER Nitro Gas - Performance | 2 |
| LEAF SPRING Light 30mm 0 - 200kg | 2 |
| U-BOLT KIT | 2 |
| BUSH KIT | 1 |
| SPACER KIT Brake Hose Relocation Kit | 1 |
| HEADLIGHT ADJ LEAF SPRING BRACKET | 1 |
| GREASABLE SHACKLES | 2 |
| NON-GREASABLE PIN | 2 |
Specification & Dimension:
| Specification | |
| Brand | Ironman 4x4 |
| Model | Nitro Gas Suspension Kit |
| Vehicle Compatibility | Isuzu D-Max, Isuzu MU-X |
| Shock Type | Twin-tube Nitro Gas |
| Construction | Full steel construction |
| Adjustability | Fixed height (non-adjustable) |
| Bushing Type | Natural rubber |
| Mounting | Vehicle-specific fitment |
| Warranty | 3 years / unlimited kilometers |
Details of Components
NITROGEN GAS PRESSURISED – Low pressure nitrogen gas dramatically reduces the likelihood of oil aeration and shock fade.
35mm TEFLON BANDED PISTON – Precision shim-stack piston specifically valved by Ironman suspension engineers, banded with teflon for smooth long life operation.
54mm TWIN TUBE BODY – Increased oil volume for improved cooling and endurance, Twin tube construction protects internal components from rock damage.
16mm – 18mm HARD CHROME PISTON ROD – Hardened and polished, volumetrically balanced to piston size.
FLEXIBLE RUBBER BUSHES – Offers quieter operation and reduces damaging side loads from shock absorber.
TRIPLE-LIP HIGH PRESSURE NOK SEAL – Maximum gas and oil retention ability to withstand high displacement offroad use.
SUPPLIMENTARY WELDED MOUNTS – Fusion welded and supplementary welded for maximum strength and reliability.
SINGLE PIECE BILLET EYE RINGS AND STEMS – Ultra robust design prevents breakage or bending of mounts.
VEHICLE SPECIFIC VALVING – Every part number is specially valved for each vehicle application, this ensures the best possible ride and handling as intended by Ironman suspension engineers.
LONG TRAVEL – Suitable for standard and raised height vehicles, additional length increases wheel articulation.
IMPACT RESISTANT STONE SHIELD – Steel or Polyethylene dust shield protects piston rod from impacts and road debris
